Mobile Induction Heater: for Deck & Bulkhead Plate
Heating and Straightening: 30-40 kW

This Mobile Induction Heating System is fully an independent and self-contained Induction Heating System with its own (1) Water Cooling Unit, (2) Capacitor Bank and (3) Frequency Converter. Output heating devices are: (1) Horizontal Deck Plate Heater & (2) Vertical Bulkhead (Hand Held) Heater.

This Mobile Induction Heating System is fully an independent and self-contained Induction Heating System with its own Water Cooling Unit, Capacitor Bank and Frequency Converter. Output Heating Devices are: Thru-Hole Bolt Heating Probe and Circular Nut Heating Coil.Built-In Water Cooling Unit: Features a 25 liter SS water tank, quad (4) air-to-water heat exchanger with a maximum of 19,000 BTU capacity, 3/4 h.p. water pump, and water distribution system.

Controls: The front of the unit, as shown, features the controls to include; 7 status lamps indicating operating conditions and alarms, power control knob (0-100%), On/Off switches, Lamp Test and Power Switch, Digital Timer Switch, Master Key Switch and 63 Amp 2-position main power Disconnect Switch. The Capacitor Bank is internal.

Mobility: Roll-Around mobility is achieved by two rear mounted directional wheels with wheel locking brake levers and four smaller rubber wheels in the front. The top of the unit is recessed for storing tools and holding the Hand Held Heating Head. A 5-10 meter long 4-wire power cable is at the rear for connecting to the customer?s electrical outlet. Four Lift Hooks are provided for hoisting onboard a ship.

40 kW specifications:

  • Continous output power: 35 kw
  • Maximum output power: 40 kw
  • Heating efficiency: 90%
  • SCR power regulation: 0-100%
  • Freq. Range 20-30 kHz
  • Voltage: 240/380/440/480 VAC
    50/60 Hz 3 phase
  • Handheld heating head: 6.5 kilos
  • Deck plate heating: 30 kilos
  • Power cable to heating head: 5-10 m
  • Cooling capacity: 17,000-19,000 BTU/hr.
  • Cooling water tank capacity: 25 liters
  • Water pump: 3/4 H.P.
  • Unit weight: 250 kilos (dry)

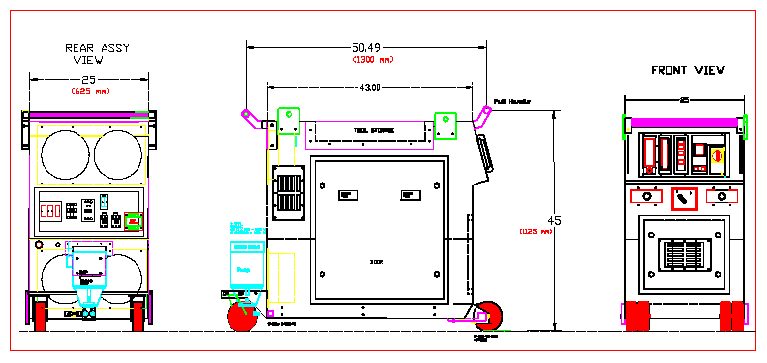

  • Dimensions: 1125 mm height x 625 mm wide x 1300 mm length.
 Click to Enlarge

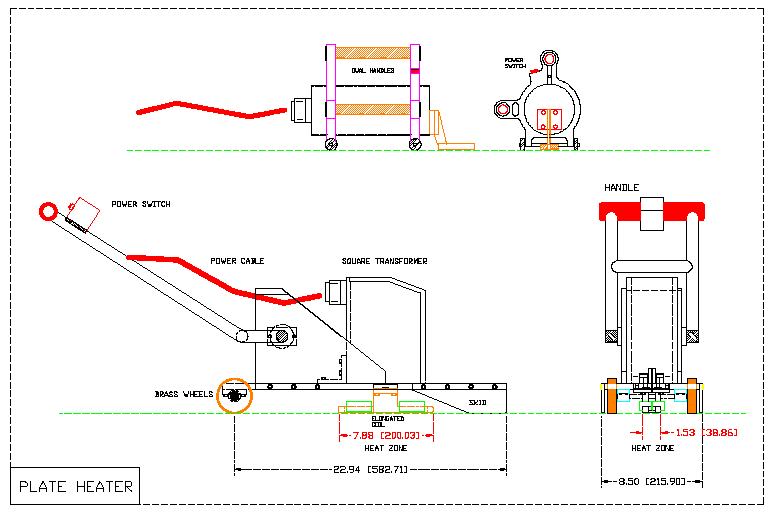

Click to Enlarge Drawing
Click to Enlarge
Click to Enlarge Drawing
Ten meter light weight cable slings over the front. 5 inch diameter wheels allows rolling over uneven surfaces. Front-mounted 3-position tap switch is used for different heating requirements. Hand unit for bulkhead plate heating.

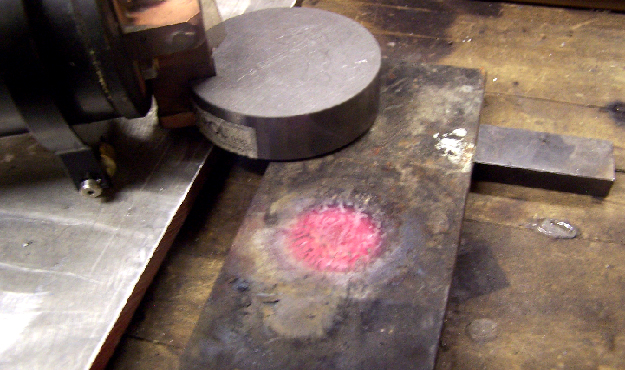

Five to Ten meter light weight cable slings over the front. 5 inch diameter wheels allows rolling over uneven surfaces. Front-mounted 3-position tap switch is used for different heating requirements. Hand unit for bulkhead plate heating.
