Mobile Induction Bolt Heater

This Mobile Induction Heating System is fully an independent and self-contained Induction Heating System with its own (1) Water Cooling Unit, (2) Capacitor Bank and (3) Frequency Converter. Output Heating Devices are: (1) Thru-Hole Bolt Heating Probe and (2) Circular Nut Heating Coil.

Built-In Water Cooling Unit: Features a 25 liter SS water tank, quad (4) air-to-water heat exchanger with a maximum of 19,000 BTU capacity, 3/4 h.p. water pump, and water distribution system.

Controls: The front of the unit, as shown, features the controls to include; 7 status lamps indicating operating conditions and alarms, power control knob (0-100%), On/Off switches, Lamp Test and Power Switch, Digital Timer Switch, Master Key Switch and 63 Amp 2-position main power Disconnect Switch. The Capacitor Bank is internal.

Mobility: Roll-Around mobility is achieved by two 6? rear mounted directional wheels with wheel locking brake levers and four smaller 5? rubber wheels in the front. The top of the unit is recessed for storing tools and holding the Hand Held Heating Head. A 10 meter long 4-wire power cable is at the rear for connecting to the customer?s electrical outlet. Four heavy duty Lift Hook positions are provided for hoisting.

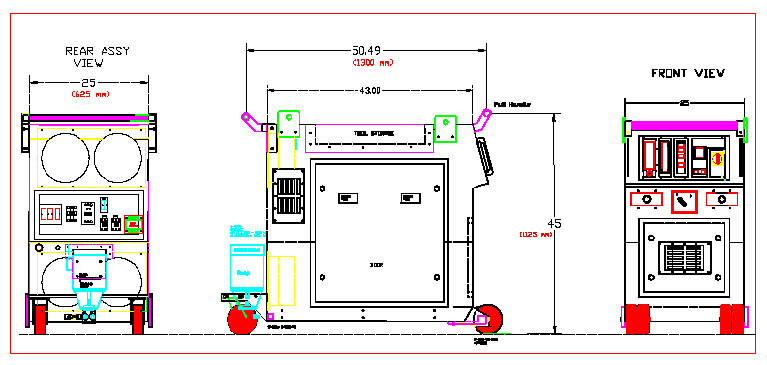

40 kW specifications: Continous output power: 30 kw Maximum output power: 40 kw Heating efficiency: 90% SCR power regulation: 0-100% Freq. Range 20-40 kHz Voltage: 240/380/480/560 VAC 50/60 Hz 3 phase Handheld heating head: 6.5 kilos Power cable to heating head: 10 m Cooling capacity: 19,000 BTU/hr. Unit weight: 250 kilos (dry) Four lift hooks and fork lift access	Click to Enlarge Drawing

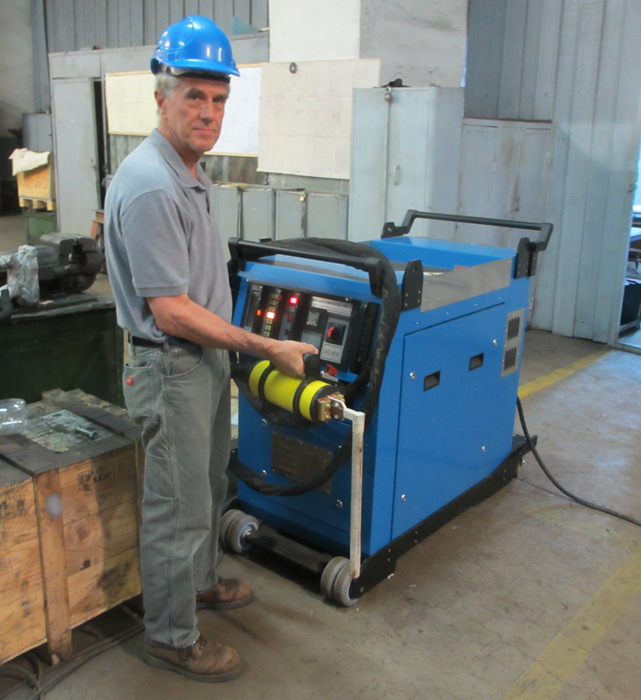

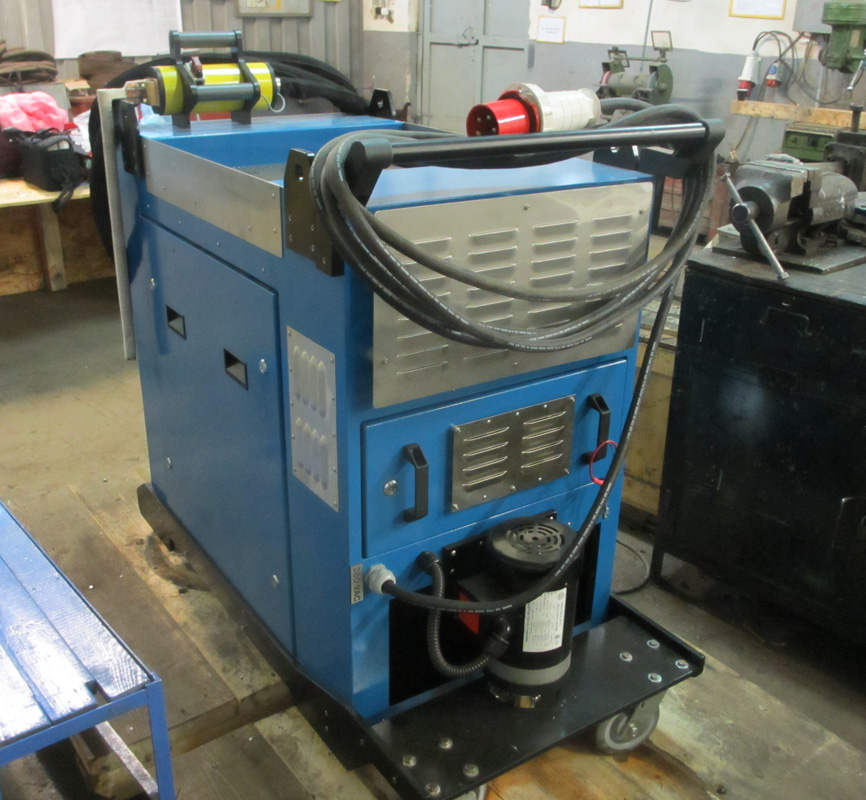

On site in Romania for Bolt Removal	Rear View Showing Electrical Compartment, Water Pump and dual chiller exhaust sections.

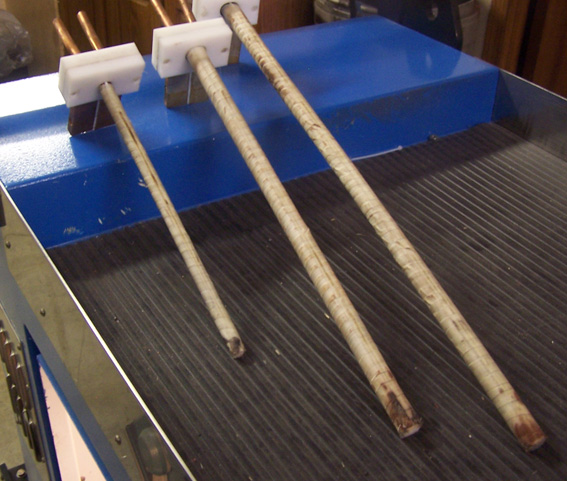

Multiple diameter and length Heating Inductors.	Water pump with 30-300 mm bolts to be removed.
