IGBT Induction Heating Generator
Applications:
Brazing, Heat Treating,
Bonding, Debonding, Crystal Growing, Shrink Fitting, etc.
Specifications:
 |
|
|
 |
|

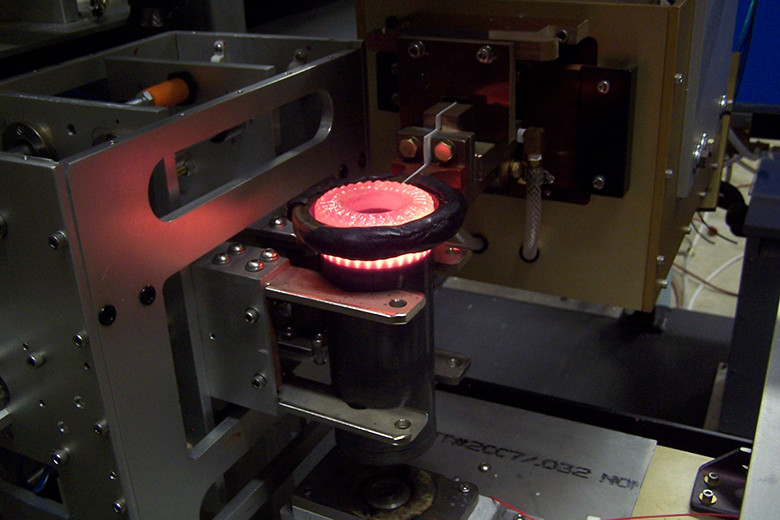

Induction brazing of
bronze bellows to brass flow switch. Note that brazing occurs at both ends of
the bellows simultaneously by means of a dual, co-axial heating
coil. |
|
- All Solid State
Electronics assures reliable operation under a variety of conditions
and in different applications.
- 3-Phase Input
Power is recified into stable DC voltage. High speed shut-down
circuitry protects the system during overloads.
- Power
Regulation is by means of Digital Timer & PID (ramp-up, hold & ramp down) Control.
- Heating
Power, as in brazing applications, can be modulated from full power
to lower power by means of std. dual mode digital timer. This allows for better
control over most brazing operations, avoiding over-heating the part. Optional
features include 2 additional power level steps (changes) when the process
requires more temperature precision during the heat cycle.
- Digital
Tuning maximizes efficiency even as the heating load changes.
- External Load
Matching Station is utilized. This allows the user to place the
power supply (shown) where it is most convenient. The load matching station
then can be mounted next to the work area. Up to approx. 40 feet (10 meters)
can span the distance between the power supply and load matching
station.
- Water-Cooling and internal fan-cooling for maximum
reliability.
- Steel
Enclosure is coated with a hard baked enamel finish and the door is
gasketed against dust and moisture.

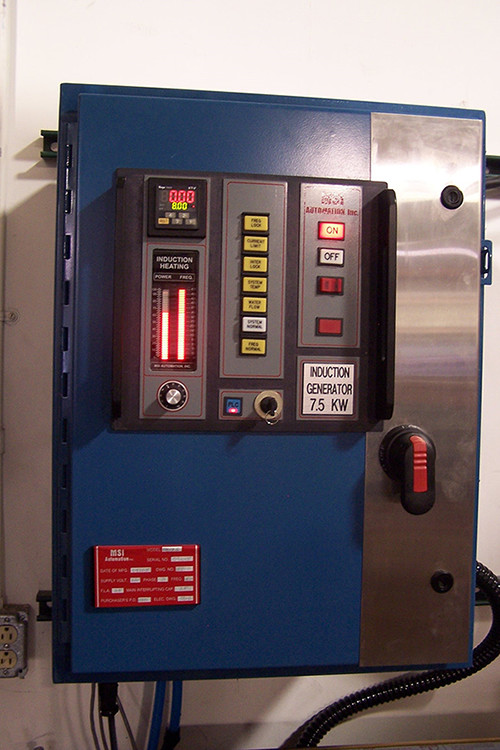

- Full Operator
Controls include 7 status lamps, on/off switches, digital timer,
power control knob, and electronic amperage and frequency display.
|
